This video explains how to choose the right sized clock shaft and the correct hands for designing your own clock or repairing a family favorite.

Quartz Movement 3 Shaft Lengths Made in USA Free Hands

This compact movement runs on one "AA" battery and has a 1-year guarantee. Made In USA

Free hour and minute hands and mounting hardware.

This movement does NOT have an on-off switch.

2 1/8" W x 2 1/8"H x 5/8" D Case Dimensions

Shaft Diameter is 5/16"

Hour and Minute Hands are free with each movement ordered. Click on the "Hands" page to select from 17 designs.

Combine all sizes for quantity discounts in the drop down boxes.

Please note that there are 3 shaft lengths. The shortest will accommodate 1/4" of material thickness, the next longest is for up to 1/2" material thickness and the longest is for materials up to 3/4" thick.

Minute/Hour Hand sets are included at no charge. Read carefully--- Look carefully at the minute hand. It has a hole that is rounded on 2 sides and squared off on the other sides. If you are buying a movement from us as a replacement, be sure minute hand has this same shape. If not, buy hands, too. Refer to the image that shows how to measure the hand length for a close up of what the hand should look like where it attaches to the shaft of the movement. IF YOU HAVE CLOCK HANDS ALREADY AND BOTH THE MINUTE AND HOUR HAND HAVE A COMPLETELY ROUND HOLE, THESE WILL NOT FIT THIS TYPE OF MOVEMENT. Look carefully at the images we have provided.

USA Made Quartz Clock Movements in 3 shaft sizes Free Hands

$7.95

Available
Ships within 1-3 days

Quartz Movement 3 Shaft Lengths Free Minute and Hour Hands Imported product.

This compact movement runs on one "AA" battery and has a 1-year guarantee. Imported movement.

Free hour and minute hands and mounting hardware.

This movement does NOT have an on-off switch.

2 1/8" W x 2 1/8"H x 5/8" D Case Dimensions

Shaft Diameter is 5/16"

Hour and Minute Hands are free with each movement ordered. Click on the "Hands" page to select from 17 designs.

Combine all sizes for quantity discounts in the drop down boxes.

Please note that there are 3 shaft lengths. The shortest will accommodate 1/4" of material thickness, the next longest is for up to 1/2" material thickness and the longest is for materials up to 3/4" thick.

Minute/Hour Hand sets are included at no charge. Read carefully--- Look carefully at the minute hand. It has a hole that is rounded on 2 sides and squared off on the other sides. If you are buying a movement from us as a replacement, be sure minute hand has this same shape. If not, buy hands, too. Refer to the image that shows how to measure the hand length for a close up of what the hand should look like where it attaches to the shaft of the movement. IF YOU HAVE CLOCK HANDS ALREADY AND BOTH THE MINUTE AND HOUR HAND HAVE A COMPLETELY ROUND HOLE, THESE WILL NOT FIT THIS TYPE OF MOVEMENT. Look carefully at the images we have provided.

USA Made Quartz Clock Movements in 3 shaft sizes Free Hands

$5.95

Available
Ships within 1-3 days

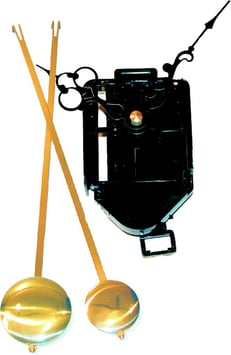

Quartz Pendulum Movement Made in USA 3 Shaft Lengths Free Hands

This is the smallest quartz pendulum movement on the market today. Uses one "AA" battery. Choose from 3 shaft lengths and 2 sizes of pendulum bob diameters. 2 1/8"w x 3 3/4"h x 5/16"d Case Dimensions

Shaft Diameter is 5/16"

Free minute and hour hand for each movement ordered.

Bob sizes are 2 1/8" diameter and 2 3/4"" diameter. Length of pendulum is 18" from the center of the dial to the bottom of the pendulum bob. Length of the pendulum can be adjusted by breaking on scored one-inch lines on the pendulum stick.

Hands are free with each movement ordered. Click on the "Hands" page to select from 17 designs.

Combine all pendulum sizes for quantity discounts (use drop-down boxes below)

Minute/Hour Hand sets are included at no charge. Read carefully--- Look carefully at the minute hand. It has a hole that is rounded on 2 sides and squared off on the other sides. If you are buying a movement from us as a replacement, be sure minute hand has this same shape. If not, buy hands, too. Refer to the image that shows how to measure the hand length for a close up of what the hand should look like where it attaches to the shaft of the movement. IF YOU HAVE CLOCK HANDS ALREADY AND BOTH THE MINUTE AND HOUR HAND HAVE A COMPLETELY ROUND HOLE, THESE WILL NOT FIT THIS TYPE OF MOVEMENT. Look carefully at the images we have provided.

Quartz Pendulum Movement

$17.95

Available
Ships within 1-3 days

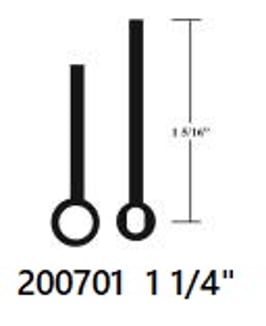

Minute & Hour Hands

Metal hands with black finish can be painted any color. Hands are measured by the minute hand length and can be clipped to desired length. Hands are free with quartz pendulum, non-pendulum movements and chiming movement.

Click here to see quartz movement options.

Clock Movement Hands

$0.00

Available
Ships within 1-3 days

Hi-Torque Quartz Clock Movements, 10" Hands or Wall Clock Plan --All Sold Separately

Hi-torque clock movements that work great for building a very large clock! We offer two lengths of shafts (for dials 3/16" and 11/16" thick) and 10" black tapered hands. Hands are measured from the center of the hole to the end of the minute hand.

5/16" THREADED SHAFT DIAMETER

The clock is designed by Better Homes & Gardens WOOD Magazine (Nov. 2016). Order plan below. Parts need are: 200T62 (3/16" movement) and 2007TJ (10" hands).

Hi-Torque Movements, Hands or Wall Clock Plans Sold Separately

$12.95
